TELESCOPIC HARVESTER TF 80 SICMA

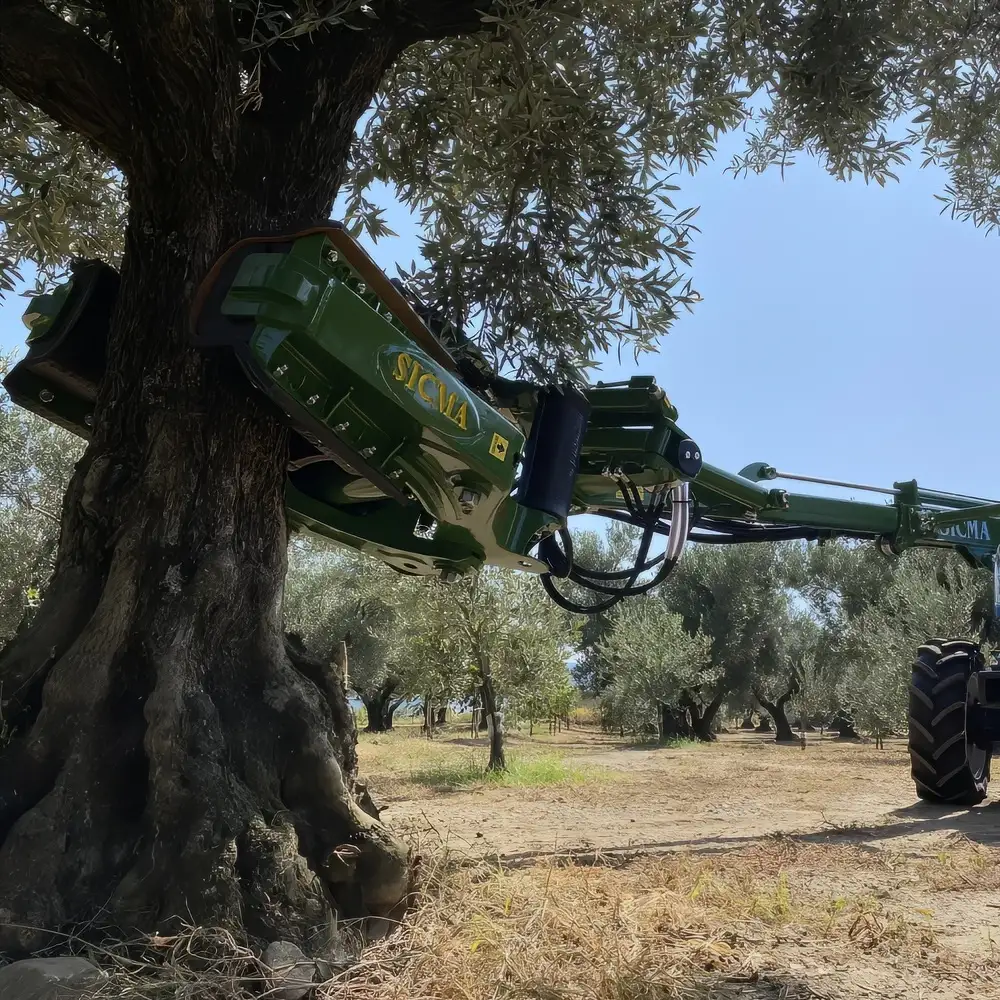

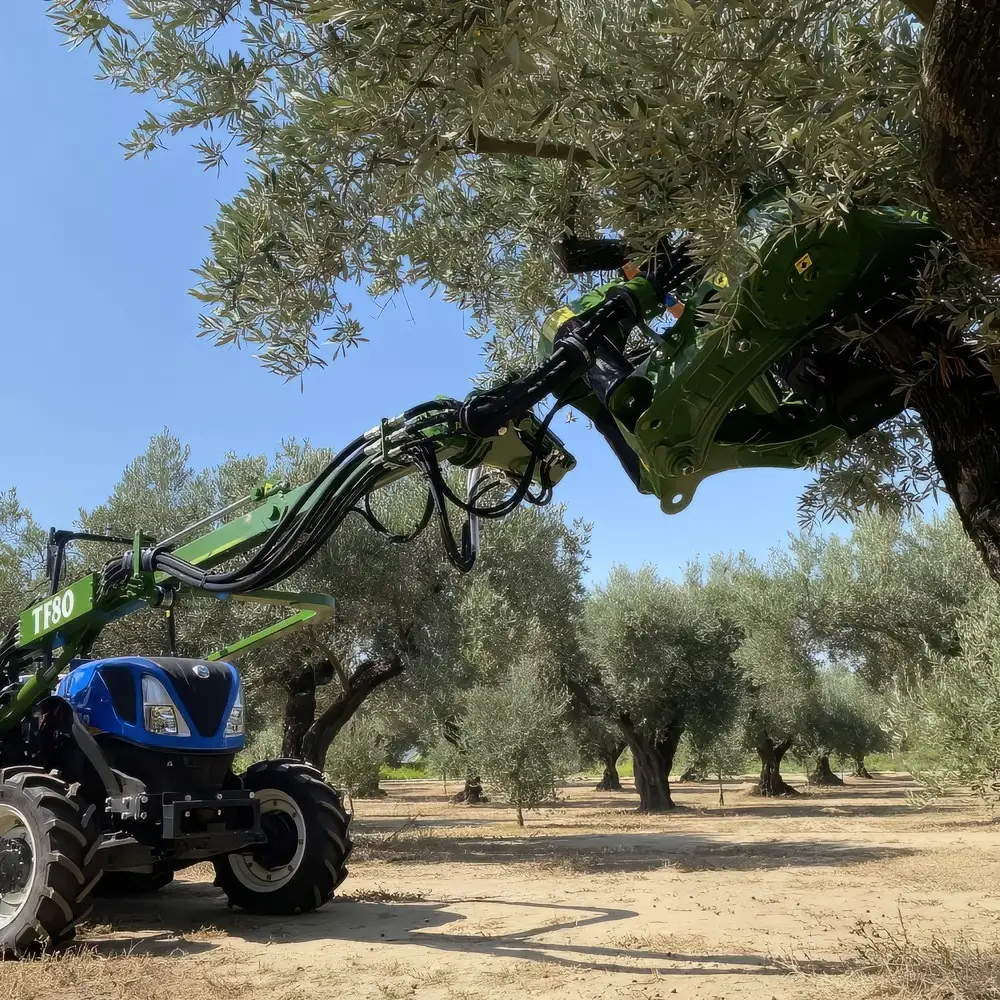

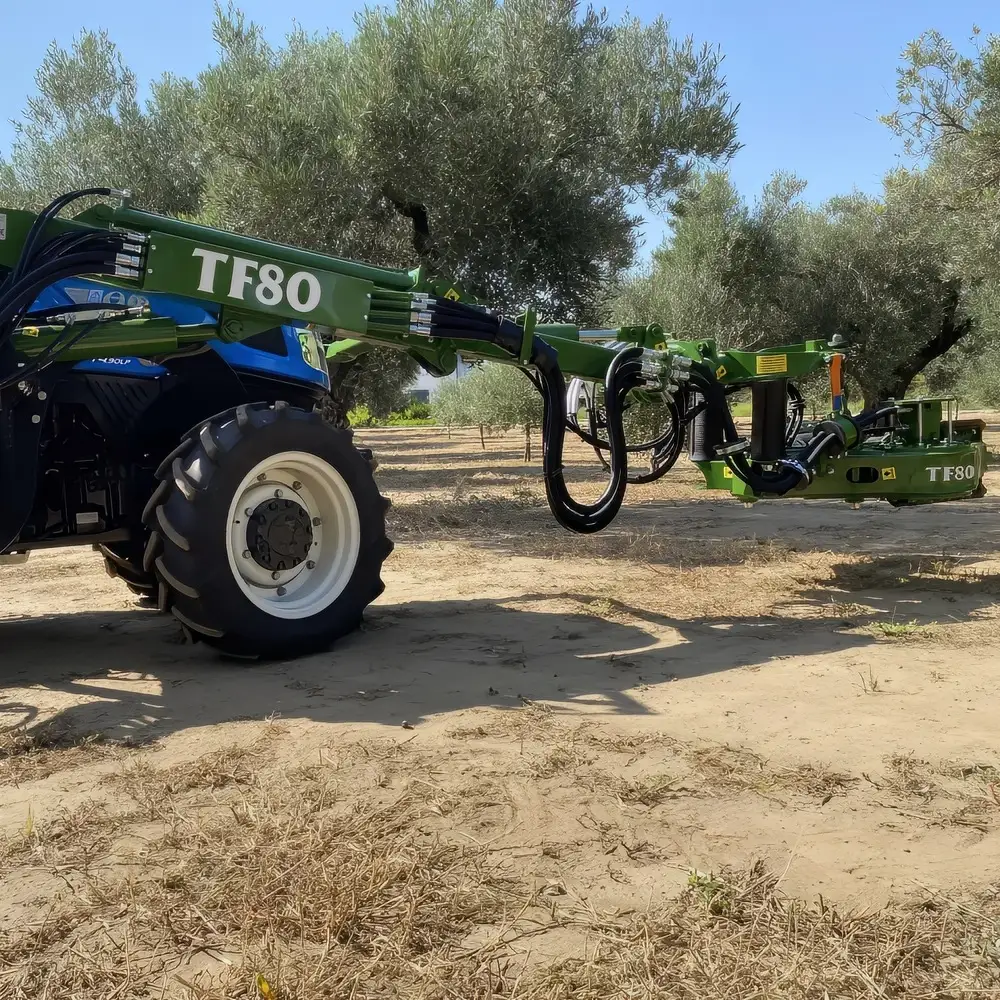

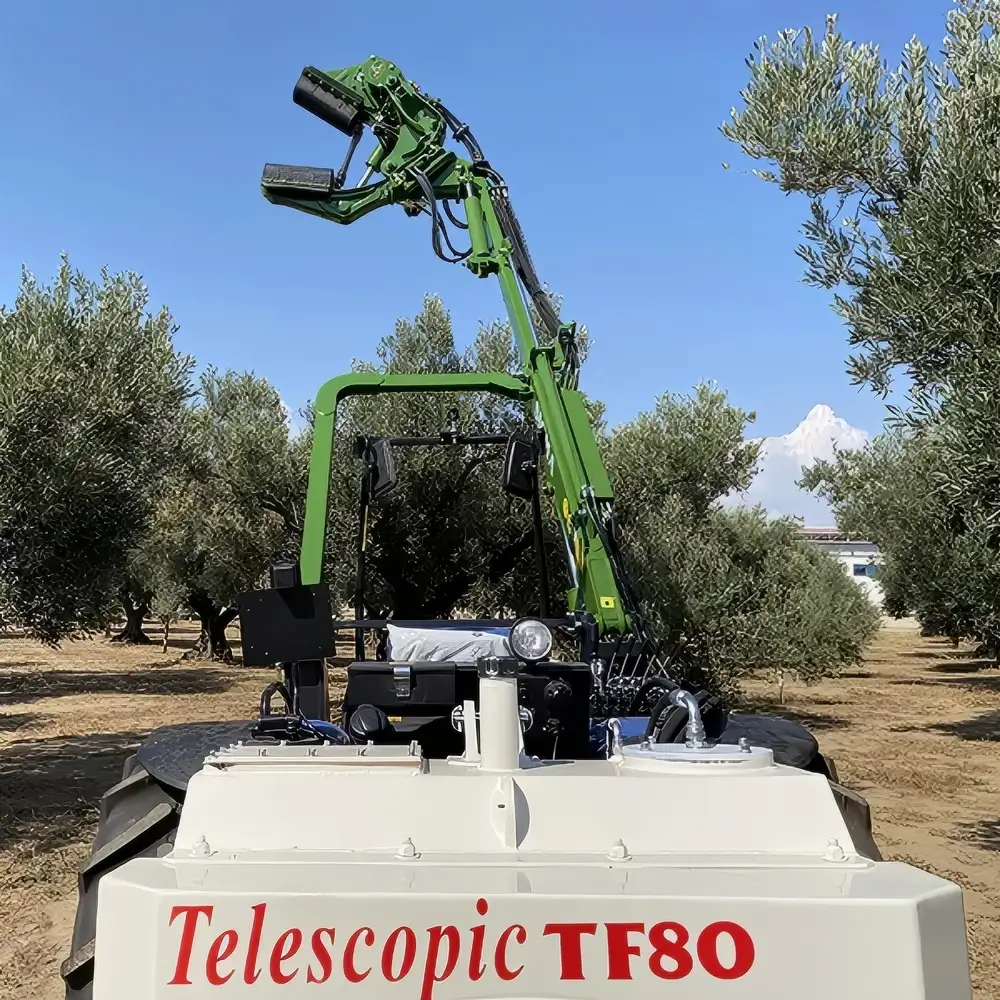

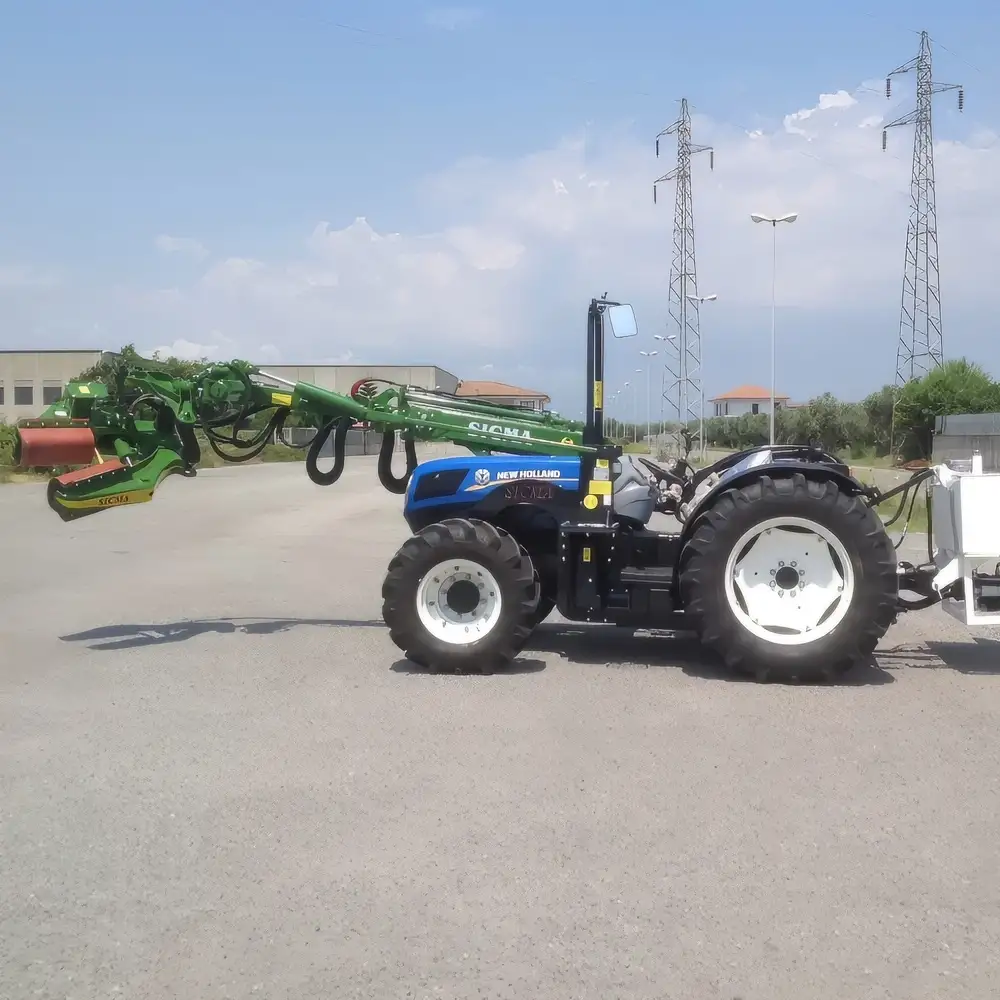

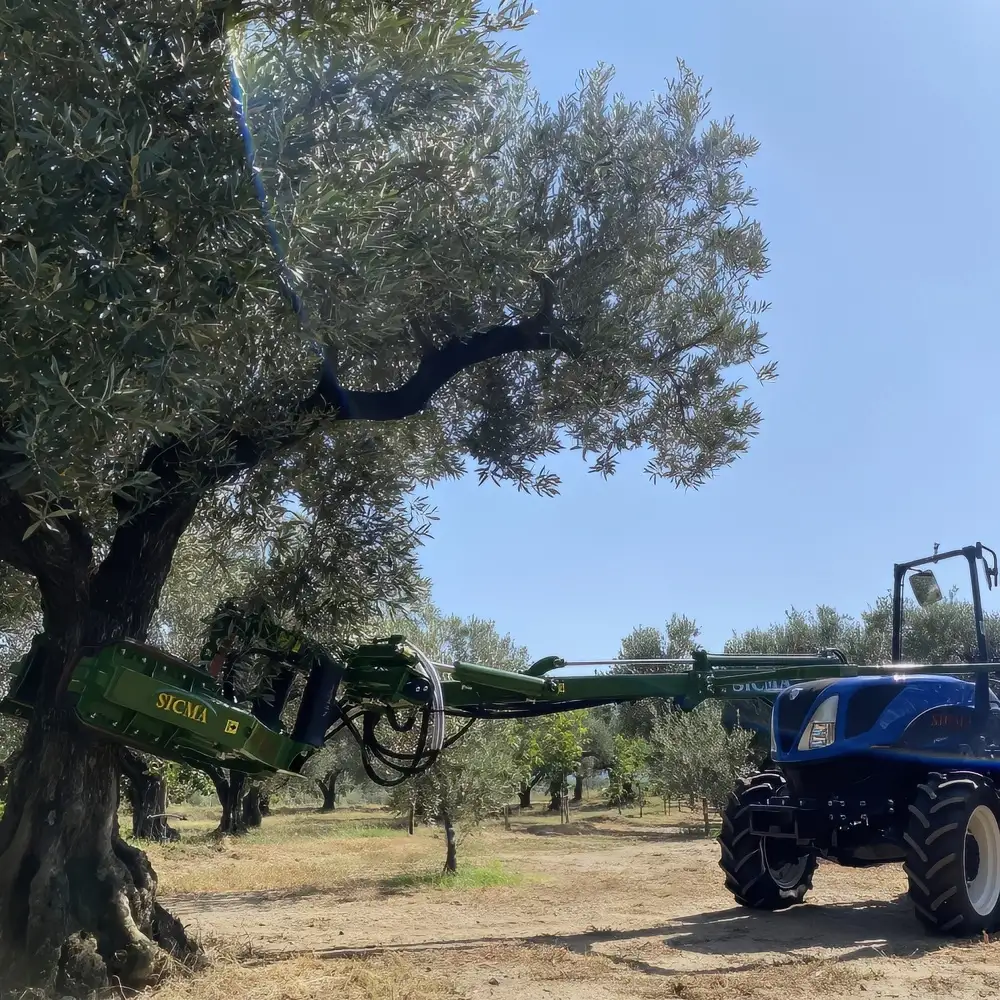

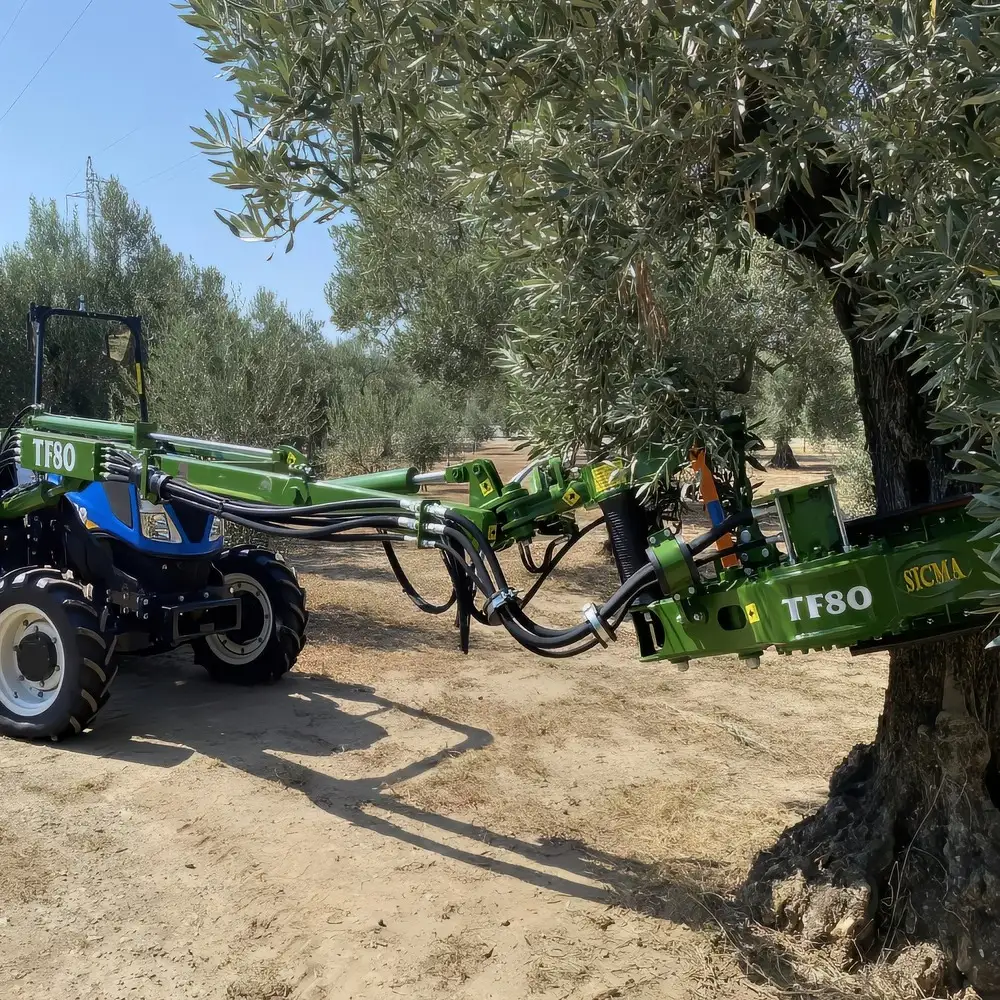

TF80 is the frontal telescopic single arm mounted on tractors (wheeled or tracked) for the harvest of both young and centuries-old trees. The TF80 is coupled to the tractor by a double reinforced loader subframe machined from solid and fixed on the drive unit chassis. Equipped with an independent hydraulic circuit (with rear oil tank), it is operated by the tractor’s PTO, of at least 80 HP. The frontal and single arm guarantees the best visual to the operator who can easily control the kit by the hydraulic lever distributor or by the joystick (optional). The New Generation Vibrating head with double jaws oscillates in any direction in the space to guarantee the proper tightening of the perennial wooden organs and in all conditions, up to 5.5 m height. Ideal for both young and centuries-old trees, it cannot be coupled with the reverse umbrella.
The latest generation of the highly specialized telescopic vibrating arm, solid and effective...
| Min HP | 65HP |
| Hooking & Actuation | Chassis (sheets of 20 mm) and cardan power shaft (PTO 540) |
| Telescopic Arm | Triplex or standard |

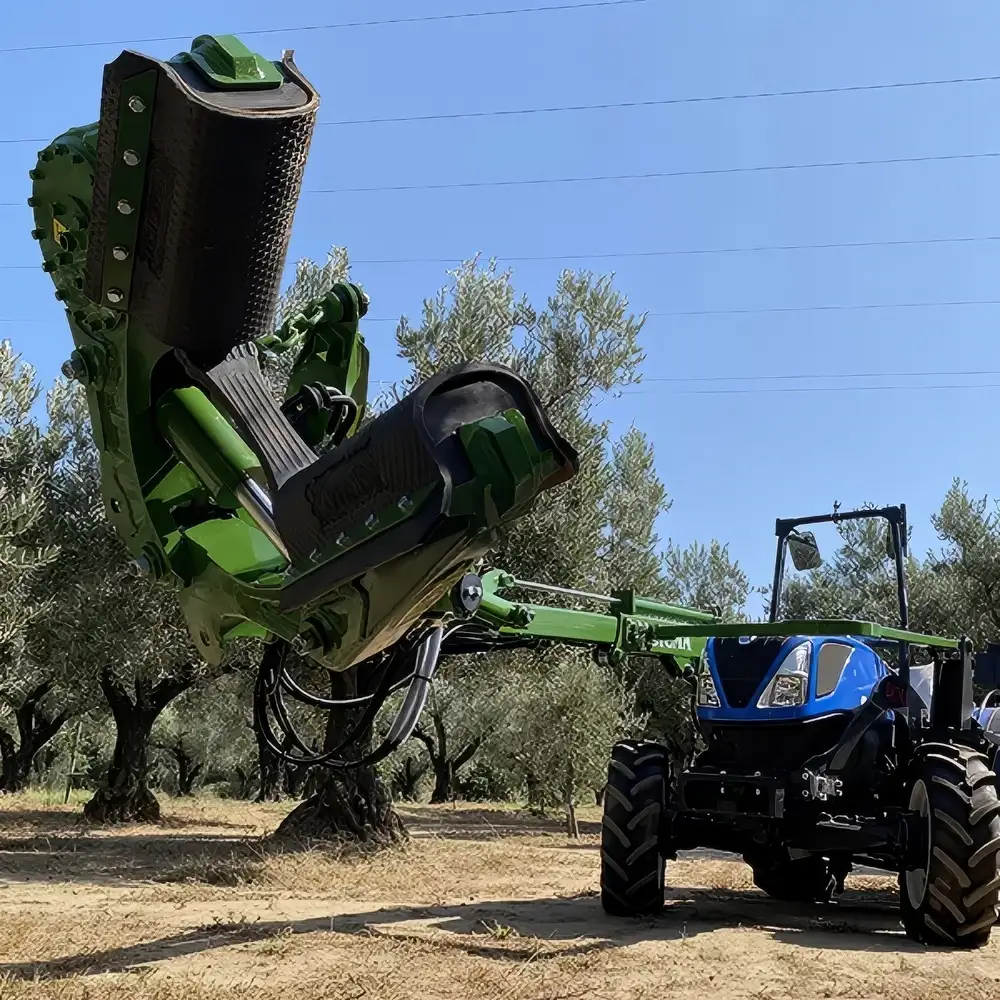

| Vibrating Head | New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds |
| Jaw opening | up to 55cm |
| Controls | Hydraulic distributor with 6 levers and electric switch |
| Hydraulic circuit | Closed hydraulic circuit composed by vibration pump, services pump and electrohydraulic valves. Hydraulic oil tank separated from the tractor circuit. Actuated by the cardan power shaft PTO (540 rpm) |
| Max length | 3.500m (wheel center-jaw edge) |

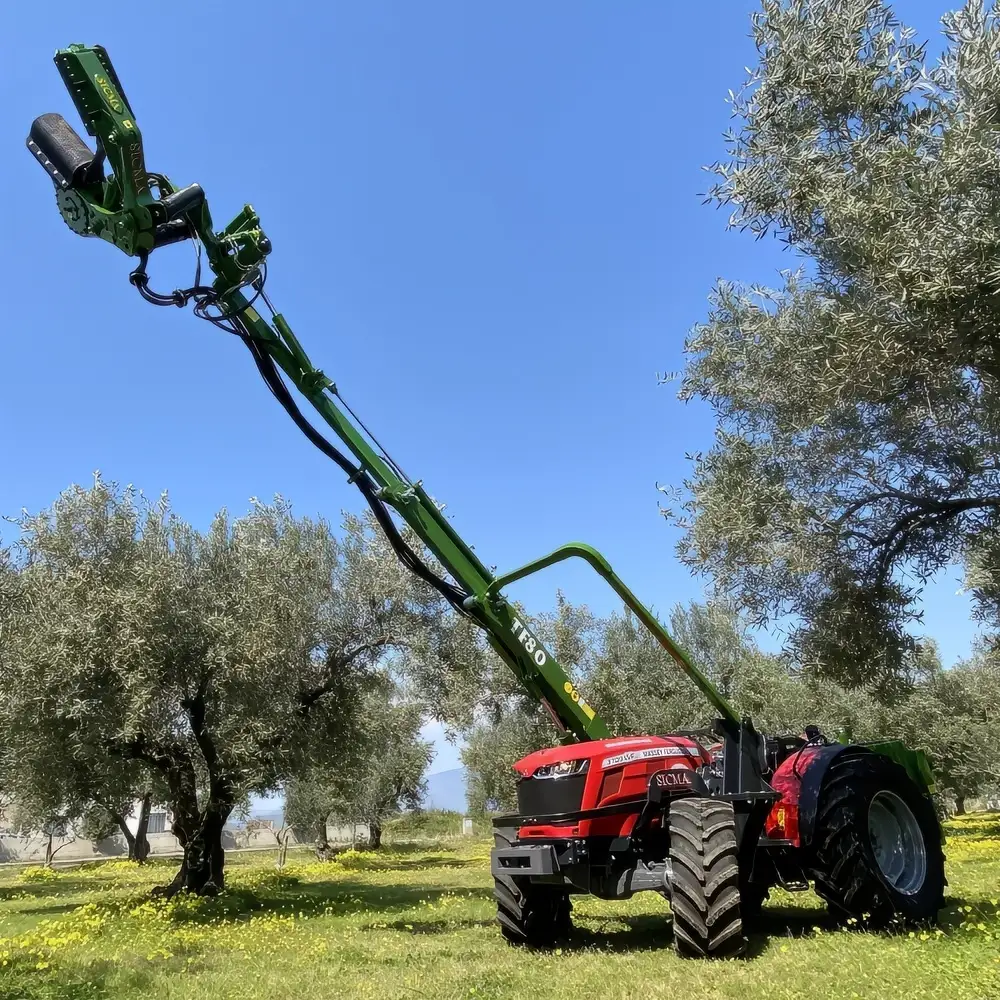

| Max height | 6m (with extened telescopic arm) |
| Total weight | 2.280 kg (including the chassis of the tractor) |
| Options | Electronic Joystick (mandatory for tractors with cabin) - Electro-hydraulic joystick - Frontal hydraulic stabilizers |
| CROP | OLIVE*WALNUT*PEANUTS*ALMOND*HAZELNUT*PECAN |
- Stock: Pre-Order
- Model: ΜΕ.02.317
